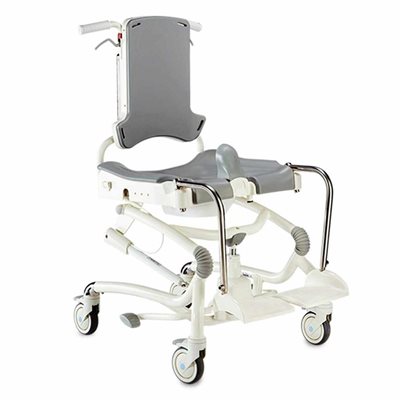

Bath And Commode Chair: Heron Pediatric Reclining

Press and move to zoom.

Mouse over image to zoom.

Product Code: 880505-01

For users with special positioning needs.
Adjustments allow you to adjust the chair to the correct position and reduce the time spent in a twisted or awkward position.
Offer multiple features that enhance both user and caregiver experience.
The seat is ergonomic, which means that it can be reclined and the back reclined without inconvenience for the user.
During the tilt, the anatomical pivot point at the hip axis is maintained which gives the user more comfort when seated.
Smooth height, tilt and tilt functions ensure optimal working conditions for the caregiver.
Can be used alone with a pan, directly above the toilet or as a bathing chair in the shower.
Equipped with four locking casters for added security.
Pressure mapping has been used in the design to minimize pressure and improve user comfort, even when the seat is used for long periods.
Available in hydraulic or motorized version.
Washable at 85°C in a washing machine designed for medical devices.
Remember to remove all accessories, unplug all cables and be sure to disassemble the control box, battery and remote control before machine washing.

HERON	Hydraulic	Power
Back width, top of back rest:	11.4"	11.4"
Overall height:	42.5"- 53"	44.5"- 53"
Overall width:	26.3"	26.3"
Effective seat depth:	17.7"	17.7"
Effective seat width:	21.6"	21.6"
Backrest height:	21.8 "- 24.6"	21.8 "- 24.6"
Lower leg lenght:	15.7" - 22"	15.7" - 22"
Seat surface height at front edge :	20" - 30.7"	22"- 30.7"
Lenght:	28"	28"
Minimum turning diameter:	22"	22"
Seat plane angle:	-5° to 25°	-5° to 25°
Backrest angle:	0° - 30°	0° - 30°
Static stability downhill and uphill:	10°	10°
Static stability sideways:	5°	5°
Maximum user weight:	220 lbs	287 lbs
